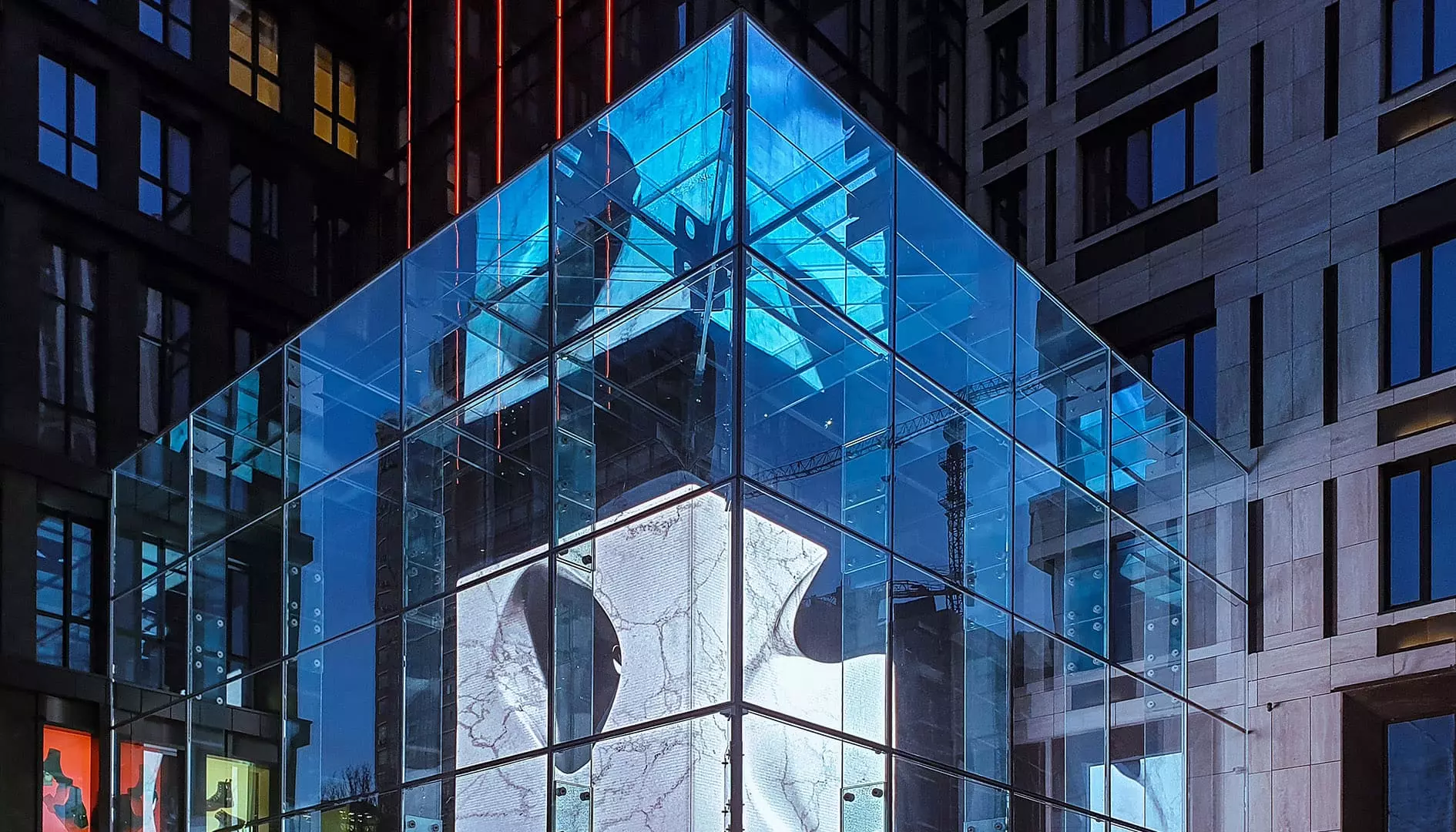

Chicago Cube, «Chicago» residential complex, Kyiv, Ukraine
The massive glass entrance structure has become the hallmark of the capital. The world’s largest glass cube, towering 12 meters high, is made of glass units. We hope that in the future, the "Chicago Cube" will be included in the Guinness Book of Records.
Architectural office of Yuriy Borodkin, architect Anna Borodkina
The entrance group of the residential complex is designed to impress guests and passers-by. The large-scale glass structure, close to the shape of a cube, is designed in such a way that even with its proportions, it excludes the use of aluminum support systems. This makes the entrance group light and aesthetically pleasing.
The 12-meter-high glass ribs of the structure perform two functions: they absorb wind loads and serve as roof supports. The maximum dimensions of the glass elements are 5.3 x 2.8 meters. There are no frames or visible metal holders on the edges.
The installation began with glass ribs and beams. Each edge was assembled on site from several parts, placed in a vertical position and covered with a beam. The structure gains stability by installing double-glazed windows at the end of the ribs with a special glue. To fix the inner edges of the horizontal glass beams, vertical metal trusses were used to hold the cube's roof and screens, each weighing about a ton.
The Aestech engineers faced another challenge: to fasten the beams to the posts on the inside of the roof in a way that would not affect the overall aesthetics of the building. If it was done directly, as everyone else does, the structure would have looked too massive. Therefore, special lodgments were glued to the posts and beams, which greatly facilitated the appearance of the structure.
It was also important to take into account the possible subsidence of the foundation and seismic activity. The structure could not be made too rigid. Subsidence would have created an additional load on the glass units with the risk of crushing them. The necessary flexibility of the structure was provided by three swing points: at the bottom and top of the cube, as well as near the walls of the building.
The installation of the cube was completed with the installation of a glass roof. It has a slope on the building, which leads water into a special gutter and then into the drainage system. The roof also houses a weather station that records precipitation and temperature outside. The roof glass is heated so that snow does not accumulate on its surface in winter.
In hot weather, it is cool and comfortable inside the cube. The double-glazed windows have high solar reflection characteristics, which minimizes the heating of the room. In addition, to avoid additional penetration of sunlight and protect the space from excessive heating, special tinted double-glazed windows were used for the roof of the cube.
Innovation, beauty, and energy efficiency are all embodied in the most recognizable element of Chicago Central House.
